تفاصيل المنتج:
|
| نموذج: | U8721SA | نطاق الطاقة: | + 5 ~ -70 ديسيبل |
|---|---|---|---|
| نطاق الطول الموجي: | 850 ~ 1700 نانومتر | مادة: | معدن |
| فترة أخذ عينات الطاقة (معدل): | 100 كيلو هرتز | حجم PD: | 2/5/12mm |
| فترة المعايرة: | سنتان |
Quickly Scan One Stop To The Bottom Of The Optical Power Meter

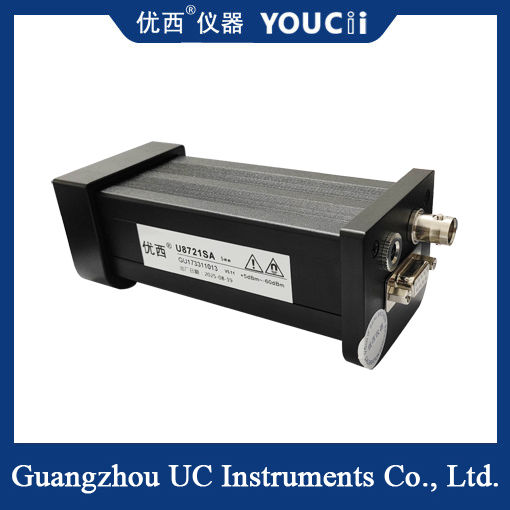

The core advantage of the rapid scanning one-stop optical power meter lies in its ability to achieve "one-stop" rapid scanning measurement of optical power through high-speed acquisition, large dynamic range and multi-channel design.
| Model | U8721SA | ||||
| Sensor Element | InGaAs | ||||
| Wavelength Range | 850 ~ 1700 nm | ||||
| Calibration wavelength | 850 / 980 / 1310 / 1510~1640nm Continuous calibration | ||||
| Power Range (dBm) | + 5 ~ -70 | ||||
|
Power sampling period(Rate) |
10 us(100KHz) | ||||
| Application Fiber Type | Standard SM and MM | ||||
| optical Input Interface | Supporting bare fiber joint or FC/LC/SC Adapter | ||||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | ||||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical value | ||||
| Linearity (power) | ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm) | ||||
| Return Loss | ＞ 40 dB | ||||
| Communication Interface | SMA/BNC,Serial port | ||||
| calibration period | 2 years | ||||
| Operation Temperature | 0 ~ +40℃ | ||||
| Storage Temperature | -30 ~ +80℃ | ||||
| Dimensions | 52mm H,60 mm W,150 mm D | ||||
| Weight | 0.5 kg | ||||
Testing of passive optical devices
Scene: Insertion loss (IL) and polarization-dependent loss (PDL) tests of devices such as optical splitters, wavelength division multiplexers (DWDM), and arraying waveguide gratings (AWG).
Advantages: The combination of high-speed acquisition and large dynamic range can quickly scan the full wavelength response curve of the device, increasing the test throughput by more than three times.
Monitoring of high-speed optical communication systems
Real-time power monitoring of high-speed optical modules such as 400G/800G in data center interconnection (DCI) and 5G fronthaul.
Advantage: The 10KHz refresh rate can capture the transient fluctuations of optical power, providing data support for system stability analysis.
