تفاصيل المنتج:
|
| واجهة البيانات: | USB/RS232 | البعد: | 245 ملم عرض ، 105 ملم ارتفاع ، 320 ملم د |
|---|---|---|---|
| نطاق الطاقة: | +10 ~ -65 ديسيبل | طول موجة المعايرة: | 850/980/1310/1490/1550/1610 نانومتر |
| تطبيق نوع الألياف: | معيار SM و MM يصل إلى حجم نواة 62.5 ميكرومتر | الخطية (القوة): | ≤ ± 0.06 ديسيبل (1200 نانومتر ~ 1610 نانومتر ، 0 ~ -50 ديسيبل) |
| خسارة العودة: | ＞ 40 ديسيبل | ||
| إبراز: | CE certified optical power meter,optical power meter with FC connector,optical power meter for temperature range,optical power meter with FC connector,optical power meter for temperature range |
||
The Optical Power Meter is a versatile and essential tool for measuring optical power levels in various optical systems. With a wide operating temperature range of 0 to +40℃, this device ensures reliable performance even in challenging environments.
Equipped with a clear LCD display, the Optical Power Meter provides easy-to-read power measurements, allowing users to quickly and accurately assess optical power levels. The display is user-friendly and ensures that readings are easily visible in different lighting conditions.
Whether in a factory setting or out in the field, this Optical Power Meter offers the flexibility of both factory and field calibration options. This calibration versatility ensures that the device can be accurately calibrated to meet specific measurement requirements, providing reliable and accurate results every time.
Overall, the Optical Power Meter is a reliable and efficient tool for measuring optical power levels with precision and accuracy. Its advanced features, including a wide operating temperature range, clear LCD display, calibration options, connector compatibility, generous data storage capacity, wide power range capability, and broad wavelength range support, make it an indispensable instrument for professionals working in the optical industry.
Dimension: 245 mm W, 105 mm H, 320 mm D

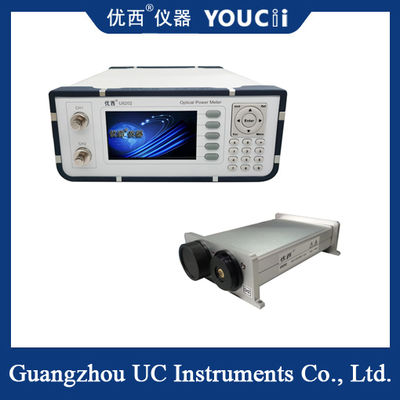

U8202 Fiber Optical Power Meter specification
| Model | U8202 | |||
| Number of Channels | 2 | |||
| Power Range | +10 ~ -65dBm / +5 ~ -70dBm | |||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
The YOUCii U8202 Optical Power Meter is a versatile tool with a wide range of product application occasions and scenarios. Its double channel Optical Power Meter design allows for efficient and accurate measurements in various settings.
One key application scenario for the U8202 is in return loss testing. With a measurement range of +10 to -65 dBm, this power meter is ideal for assessing return loss in optical systems. Its precise measurements help ensure optimal performance and signal quality.
Another important application occasion for the U8202 is in monitoring power levels across different wavelengths. The power meter supports a wide Wavelength Range, making it suitable for use in diverse optical setups. Whether testing single-mode or multi-mode fibers, the U8202 delivers reliable results.
