تفاصيل المنتج:
|
| مزود الطاقة: | محول التيار الكهربائي | نوع الموصل: | فك/SC/LC |
|---|---|---|---|
| واجهة الاتصال: | RS232 ، USB ، التحكم عن طريق الكمبيوتر | الخطية (القوة): | ≤ ± 0.06 ديسيبل (1200 نانومتر ~ 1610 نانومتر، 0 ~ -60 ديسيبل) |
| تطبيق نوع الألياف: | معيار SM و MM يصل إلى حجم نواة 62.5 ميكرومتر | وزن: | 3.0 كجم |
| أبعاد: | 235 ملم عرض، 55 ملم ارتفاع، 320 ملم عمق | ||
| إبراز: | optical power meter with USB interface,optical power meter for precise measurements,optical power meter with RS232 data,optical power meter for precise measurements,optical power meter with RS232 data |
||

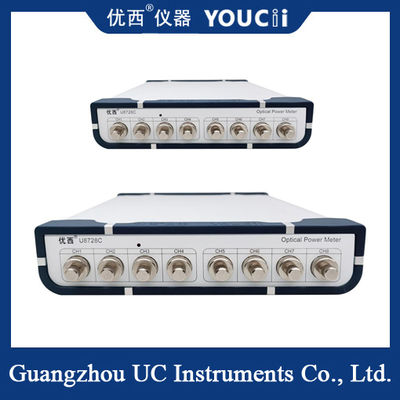

The optical power meter is a multi-functional and reliable tool, specifically designed for precise power measurement in fiber optic networks. It can be connected to a computer for use, providing clear and easy-to-read results to ensure the efficiency and accuracy of your testing and troubleshooting tasks.
One of the main features of this power meter is its flexible calibration options. You can choose factory calibration to achieve out-of-the-box accuracy or on-site calibration for on-site adjustment, thereby customizing the instrument according to your specific needs and requirements.
U8724/8 technical specification:
| Model # | U8724/8A | U8724/8B | U8724/8C |
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm |
1510~1625 nm Continuous calibration |
|
| Power Range | +10 ~ -65dBm | +25~-55dBm | +5~-75dBm |
| Sampling period | 100us (10KHz) | 10 us (100KHz) | |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
This power meter features multiple connector options, including FC, SC and LC, and is compatible with various fiber optic systems, making it a versatile tool for a wide range of applications. Whether you are working on single-mode or multi-mode optical fibers, the optical power meter can provide the connection required for seamless testing.
In addition to its reliable performance, this power meter also features a convenient data interface for easy data transmission and analysis. It features USB and RS232/LAN interfaces, allowing you to quickly and effectively download measurement data to a computer or other devices for further processing and recording.
In terms of power range and accuracy, optical power meters excel at providing precise measurements over a wide range of power levels. Whether you are testing high-power signals or low-power transmissions, this instrument can provide the required sensitivity and resolution, allowing you to capture accurate readings with confidence.
In addition, the optical power meter is equipped with processing return loss measurement accuracy and precision. By precisely measuring the reflected power in the optical fiber system, you can assess the quality of the connection and identify any potential issues that may affect signal integrity and performance.
