تفاصيل المنتج:
|
| وقت الصعود والهبوط (20٪ إلى 80٪): | 18 ~ 23ps | نموذج: | U9210E |
|---|---|---|---|
| مادة: | معدن | معدل البيانات: | 622 متر حتى 15 جيجابت في الثانية |
| ارتعاش إخراج البيانات (RMS): | 1.5 (10.3125g أسفل) ps | ||
| إبراز: | 15G BERT tester with 12-channel,electrical port bit error meter,full-rate compatible BERT tester,electrical port bit error meter,full-rate compatible BERT tester |
||
Focusing on the efficiency and accuracy of communication testing, the 15G 12-channel electrical port bit error rate tester has achieved a technological breakthrough of "full rate coverage + multi-channel parallelism". Its rate range extends from 622M to 15G, perfectly meeting the testing requirements of multi-standard devices such as SDH, Ethernet, and optical transmission. Twelve independent electrical channels can simultaneously initiate tests, significantly shortening the multi-link verification cycle. Whether it is the cutting-edge research in university laboratories or the batch testing on factory production lines, it can become the "gold standard" for communication quality control with its precise bit error analysis capability.
| No. |
parameter |
minimum |
typical |
maximum |
unit |
| 1 |
Data rate |
0.622 | 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 | 15 | Gbps |
| 2 |
Code type |
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 3 |
Rise and fall time (20% to 80%) |
18 | 23 | ps | |
| 4 |
Pattern reversal |
Supports signal reversal at the receiving end |
|||
| 5 |
Signal output amplitude (single-ended) |
200 | 800 | 1000 | mV |
| 6 |
Data output jitter (RMS) |
1.5 (10.3125G down) |
ps | ||
| 7 |
Data input/output interface |
Differential, AC coupling, 50 ohm impedance, SMA |
|||
| 8 |
Clock output |
100 | 156.25 | 156.25 | MHz |
| 9 |
Data signal input sensitivity (single-ended) |
0.1 | Vpp | ||
| 10 |
Data output eye graph intersections |
50 | 52 | 54 | % |
| 11 |
Operating temperature |
10 | 25 | 5 |

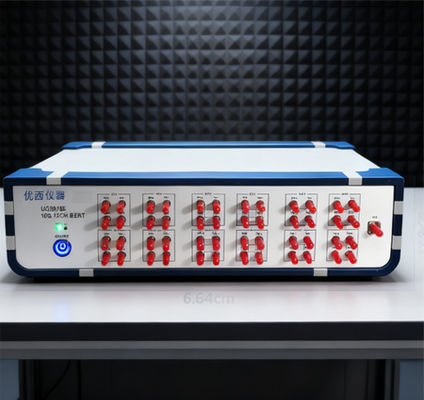

The YOUCii U9210E BERT Tester is a versatile testing device designed for a wide range of applications and scenarios. With its robust metal construction and high-quality components, this BERT Tester is reliable and durable, making it suitable for various testing environments.
One of the key features of the YOUCii U9210E BERT Tester is its ability to handle data rates ranging from 622M up to 15Gbps, making it ideal for testing high-speed communication systems. The product's data output jitter (RMS) of 1.5 (10.3125G Down)ps ensures accurate and precise test results, making it a reliable tool for data analysis and troubleshooting.
Whether you are working in a telecommunications lab, a data center, or a manufacturing facility, the YOUCii U9210E BERT Tester can be used in a variety of application occasions and scenarios. It is perfect for testing the performance of networking equipment, evaluating signal integrity, and verifying the quality of data transmission.
Manufactured in China, the YOUCii U9210E BERT Tester combines quality craftsmanship with advanced technology to meet the needs of professionals in the field. Its intuitive interface and user-friendly design make it easy to operate, even for those with limited testing experience.
Overall, the YOUCii U9210E BERT Tester is a versatile and reliable testing device that can be used in a wide range of applications and scenarios. Whether you are testing high-speed communication systems or troubleshooting data transmission issues, this BERT Tester is a valuable tool that delivers accurate and consistent results.
